Grey water

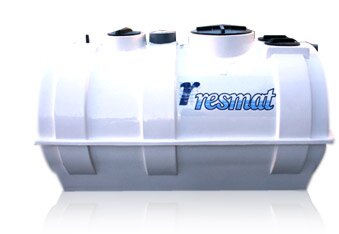

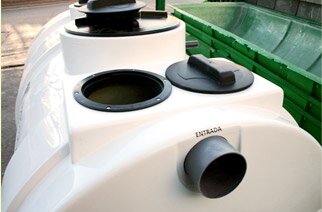

This unit was designed to meet a need to re-use water. Water from showers is treated and can be reused for toilet cisterns or irrigation.
We have 2 models, one for reusing water for toilet cisterns and the other for irrigation. Each of the models is available in underground and overground versions.
|
 |
ADVANTAGES
- Great savings in consumption of drinking water.
- The model for re-use for toilet cisterns, has been developed with a new water capture system; this allows us to reduce tank volumes for locations in basements, machine rooms, car parks, etc.
- The units are delivered with all the accessories required for operation (except the boost pump).
- They include a compartment for storing the treated water, ready to be connected to a pump to distribute the clean water.
- Low electricity consumption.
|
|
 |
|
MAINTENANCE
- Check the filters regularly.
- Clean out excess sludge once a year.
- Change the UV lamp once a year.
- Check chlorine level.
|
|
INSTALLATION
- In order to install this treatment system, the water lines through which the re-used water is piped must be separate. The pipes containing the water must be marked "NOT DRINKING WATER".
|
|
|
|
Model for toilet re-use
| Population |
Tank volume, (litres.) |
Pipes (mm.) |
Diameter (mm.) |
Length (mm.) |
| 50 |
2.000 |
90 |
1.100 |
2.150 |
| 85 |
3.500 |
90 |
1.100 |
3.700 |
| 100 |
4.000 |
90 |
1.500 |
2.750 |
| 125 |
5.000 |
90 |
1.625 |
2.500 |
| 150 |
6.000 |
110 |
1.725 |
3.000 |
|
| Consult us for other volumes |
Model for irrigation re-use
| Population |
Irrigation flow (l/day.) |
Tank volume, (litres.) |
Pipes (mm.) |
Diameter (mm.) |
Length (mm.) |
| 15 |
900 |
2.000 |
90 |
1.100 |
2.150 |
| 25 |
1.600 |
3.500 |
90 |
1.100 |
3.700 |
| 30 |
1.900 |
4.000 |
90 |
1.500 |
2.750 |
| 40 |
2.400 |
5.000 |
90 |
1.625 |
2.500 |
| 45 |
2.800 |
6.000 |
110 |
1.725 |
3.000 |
| 65 |
3.900 |
8.000 |
110 |
2.000 |
2.960 |
| 80 |
4.800 |
10.000 |
110 |
2.000 |
3.600 |
| 100 |
6.000 |
12.000 |
110 |
2.500 |
3.000 |
| 125 |
7.500 |
15.000 |
110 |
2.500 |
3.600 |
| 150 |
9.000 |
18.000 |
110 |
2.500 |
4.200 |
|
| Contact us |
|
|
|
