Screen

Pre-treatment > Screen
The purpose of the screen is to retain the large bodies carried along with the waste water, which can hinder operation of the treatment equipment.
The system consists of a GRP (fibreglass-reinforced polyester) tank with a protrusion screen with 25x25 mm opening for retaining the foreign bodies.
Screen
Screen
MATERIAL
-Fibreglass-reinforced polyester.
-Polypropylene manholes.

CHARACTERISTICS
-High chemical and mechanical resistance.
-High corrosion-resistance.
-High weather-resistance.

MAINTENANCE
-Remove the retained solids regularly.

OPERATION
-Separation of bulky bodies from waste water.

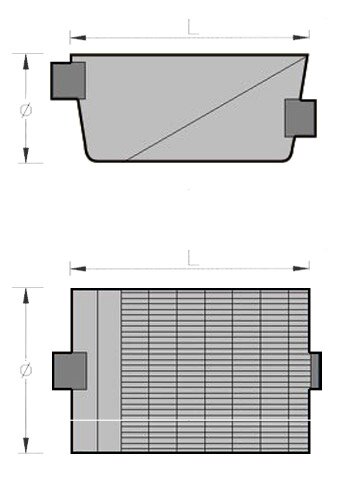

Available models
Rectangulares
  Vol. (L)
 L (mm.)
 W (mm.)
 H (mm.)
300
1.100
800
500
500
1.300
900
600
1.000
1.600
1.200
750
Consult us for other volumes
Operating Details
Depending on the water flow to be treated we also have AUTOMATIC CIRCULAR SCREENS and SPIRAL SCREENS.
