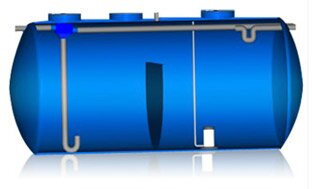

Rain water collection tanks
These tanks are designed to collect rain water. To install the tanks, you will need to channel the pipes from roofs and terraces towards the tank. There is a filter to prevent particles of over 0.55 mm getting in.
This prevents leaves, sand, bird droppings, etc. from getting into the tank.
If particles of this type did get into a tank with still water, it would lead to problems with odours and decomposition of the organic matter.
|
 |
MATERIAL
-Fibreglass-reinforced polyester.
-Polypropylene manholes.
|
CHARACTERISTICS
-High chemical and mechanical resistance.
-High corrosion-resistance.
-High weather-resistance.
|
|
Garden rainwater collection tanks
Rainwater collection tank, with garden type filter, with filter capacity of up to 0.55 mm.
The particles retained are held in a stainless steel basket, which can easily be removed for cleaning.
|
 |
Use
- Catchment area of 150-200 m2.
- Catchment surface with no nearby trees.
- No connection to the sewage mains.
|
|
Available models
| Volume (L) |
Ø (mm.) |
L (mm.) |
Pipe (mm.) |
Filter (model) |
| 2.000 |
1.100 |
2.150 |
110 |
Garden Filter |
| 3.000 |
1.725 |
1.500 Alt. |
110 |
Garden Filter |
| 3.500 |
1.100 |
3.700 |
110 |
Garden Filter |
| 4.000 |
1.500 |
2.750 |
110 |
Garden Filter |
| 5.000 |
1.625 |
2.500 |
110 |
Garden Filter |
| 6.000 |
1.725 |
3.000 |
110 |
Garden Filter |
| 8.000 |
1.600 |
4.269 |
110 |
Garden Filter |
| 8.000 |
2.000 |
2.960 |
110 |
Garden Filter |
| 10.000 |
2.000 |
3.500 |
110 |
Garden Filter |
| 12.000 |
2.000 |
4.143 |
110 |
Garden Filter |
| 15.000 |
2.000 |
5.400 |
110 |
Garden Filter |
| 15.000 |
2.500 |
3.570 |
110 |
Garden Filter |
| 18.000 |
2.500 |
4.200 |
110 |
Garden Filter |
| 20.000 |
2.500 |
4.580 |
110 |
Garden Filter |
| 25.000 |
2.500 |
5.600 |
110 |
Garden Filter |
| 30.000 |
2.500 |
6.620 |
110 |
Garden Filter |
| 35.000 |
2.500 |
7.700 |
110 |
Garden Filter |
| 40.000 |
2.500 |
8.700 |
110 |
Garden Filter |
| 45.000 |
2.500 |
9.700 |
110 |
Garden Filter |
| 50.000 |
2.500 |
10.700 |
110 |
Garden Filter |
|
The tanks can be supplied with 2 different kits:
| Kit 1 |
Kit 2 |
- 2-3 manholes.
- 1 PVC 110 inlet.
- 1 PVC 110 overflow spout.
- 1 outlet for suction pump, 2".
|
- Accessories kit 1.
- FCI filter incorporated in the tank.
- Anti-turbulence inlet.
|
|
|
FCI rainwater collection tanks
Rainwater collection tank, with FCI type filter, with filter capacity of up to 0.55 mm.
Any leaves and particles trapped are discharged directly into the sewage mains.
Use
- Catchment area of 150-200 m2.
- Catchment surface where there are nearby trees.
- Connection to the sewage mains.
|
|
|
 |
Available models
| Volume (L) |
Ø (mm.) |
L (mm.) |
Pipe (mm.) |
Filtre (model) |
| 2.000 |
1.100 |
2.150 |
110 |
Interior FCI |
| 3.000 |
1.725 |
1.500 Alt. |
110 |
Interior FCI |
| 3.500 |
1.100 |
3.700 |
110 |
Interior FCI |
| 4.000 |
1.500 |
2.750 |
110 |
Interior FCI |
| 5.000 |
1.625 |
2.500 |
110 |
Interior FCI |
| 6.000 |
1.725 |
3.000 |
110 |
Interior FCI |
| 8.000 |
1.600 |
4.269 |
110 |
Interior FCI |
| 8.000 |
2.000 |
2.960 |
110 |
Interior FCI |
| 10.000 |
2.000 |
3.500 |
110 |
Interior FCI |
| 12.000 |
2.000 |
4.143 |
110 |
Interior FCI |
| 15.000 |
2.000 |
5.400 |
110 |
Interior FCI |
| 15.000 |
2.500 |
3.570 |
110 |
Interior FCI |
| 18.000 |
2.500 |
4.200 |
110 |
Interior FCI |
| 20.000 |
2.500 |
4.580 |
110 |
Interior FCI |
| 25.000 |
2.500 |
5.600 |
110 |
Interior FCI |
| 30.000 |
2.500 |
6.620 |
110 |
Interior FCI |
| 35.000 |
2.500 |
7.700 |
110 |
Interior FCI |
| 40.000 |
2.500 |
8.700 |
110 |
Interior FCI |
| 45.000 |
2.500 |
9.700 |
110 |
Interior FCI |
| 50.000 |
2.500 |
10.700 |
110 |
Interior FCI |
|
The tanks can be supplied with 2 different kits:
| Kit 1 |
Kit 2 |
- 2-3 manholes.
- 1 PVC 110 inlet.
- 1 PVC 110 overflow spout.
- 1 outlet for suction pump, 2".
|
- Accessories kit 1.
- FCI filter incorporated in the tank.
- Anti-turbulence inlet.
|
|
|
HOF rainwater collection tanks
|
Available models
| Volume (L) |
Ø (mm.) |
L (mm.) |
Pipe (mm.) |
Filtre (model) |
| 2.000 |
1.100 |
2.150 |
110 |
Exterior HOF |
| 3.000 |
1.725 |
1.500 Alt. |
110 |
Exterior HOF |
| 3.500 |
1.100 |
3.700 |
110 |
Exterior HOF |
| 4.000 |
1.500 |
2.750 |
110 |
Exterior HOF |
| 5.000 |
1.625 |
2.500 |
110 |
Exterior HOF |
| 6.000 |
1.725 |
3.000 |
110 |
Exterior HOF |
| 8.000 |
1.600 |
4.269 |
110 |
Exterior HOF |
| 8.000 |
2.000 |
2.960 |
110 |
Exterior HOF |
| 10.000 |
2.000 |
3.500 |
110 |
Exterior HOF |
| 12.000 |
2.000 |
4.143 |
110 |
Exterior HOF |
| 15.000 |
2.000 |
5.400 |
110 |
Exterior HOF |
| 15.000 |
2.500 |
3.570 |
110 |
Exterior HOF |
| 18.000 |
2.500 |
4.200 |
110 |
Exterior HOF |
| 20.000 |
2.500 |
4.580 |
110 |
Exterior HOF |
| 25.000 |
2.500 |
5.600 |
110 |
Exterior HOF |
| 30.000 |
2.500 |
6.620 |
110 |
Exterior HOF |
| 35.000 |
2.500 |
7.700 |
110 |
Exterior HOF |
| 40.000 |
2.500 |
8.700 |
110 |
Exterior HOF |
| 45.000 |
2.500 |
9.700 |
110 |
Exterior HOF |
| 50.000 |
2.500 |
10.700 |
110 |
Exterior HOF |
|
The tanks can be supplied with 2 different kits:
| Kit 1 |
Kit 2 |
- 2-3 manholes.
- 1 PVC 110 inlet.
- 1 PVC 110 overflow spout.
- 1 outlet for suction pump, 2".
|
- Accessories kit 1.
- FCI filter incorporated in the tank.
- Anti-turbulence inlet.
|
|
|
Functions included in all models
Manhole: For access to and maintenance on the various tank components.
Anti-turbulence inlet: The water inlet is through the bottom of the tank, preventing turbulence in the water and sedimented solids. The construction type also facilitates oxidation in the tank, thus preventing unpleasant odours.
Overflow spout: Overflow spout incorporated, for removing excess water. It is designed to remove the surface sheet of water from the tank, thus helping to remove any suspended pollen that might have got in. It also stops rodents from getting in and the siphon-shape stops unpleasant odours from getting back.
|
|
|
